CXL Monocular Microscope
Product Details:
Product Description
080

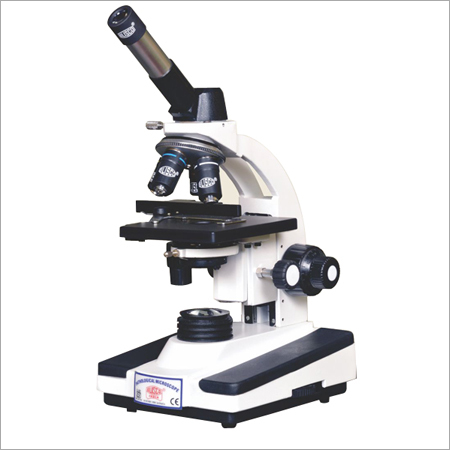

MONOCULAR INCLINED MICROSCOPE CX- 111
* The future of classroom microscope with crisp sharp image, very much convenient in working, light weight, ergonomic design for schools & college labs, medical institutes, universities @ affordable price.
* OBSERVATION HEAD: Monocular Inclined at 45° and Rota table 360º with perfectly centered Quadruple revolving nose piece.
* OBJECTIVES-- 4/5x, 10x, 40/ 45x, 100x (oil) EYE PIECES- 10x WF, 5x or 15x Huy. (Any one)
* MECHANICAL STAGE:
* Double plate 125x115 mm Low drive mechanical stage in extra large size (125mm X145mm) for X & Y movement with Sub stage bright field condenser N.A. 1.25 & iris diaphragm with built in swing out filter holder and up-down movement through rack & pinion.
* COAXIAL FOCUSING SYSTEM:
* CO AXIAL coarse & fine focusing mechanism which provides the highest degree of sensitive free from back lash in Operating the fine focusing of Optical System.
* EXTRA LARGE BASE:To support the robust arm, has built in WITH LED COOLED BRIGHT Illumination or 6V 20 W HALOGEN LAMP with soft start and continuously variable, quick change bulb provision.
